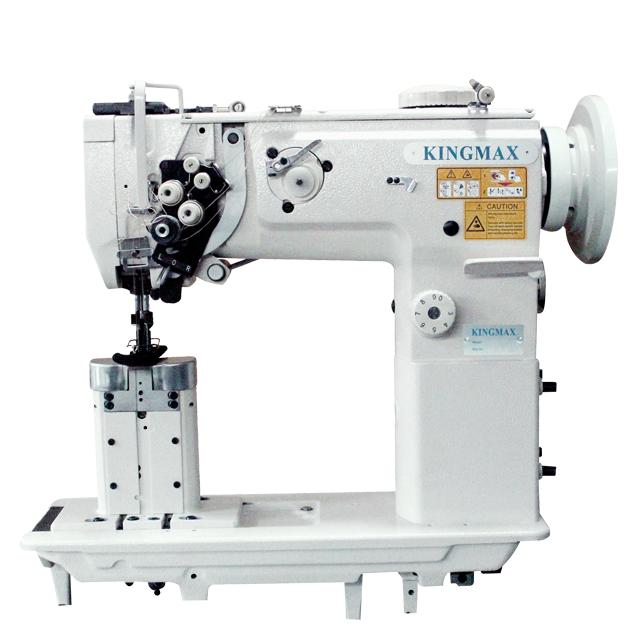

复合送料缝纫机 GC1765 系列

GC1765         2-needle, post bed, split needle bar,
                      industrial sewing machine
GC1765D-7   Direct drive, automatic thread trimmer
                      version based on GC1765

  • GC1765系列

  • KINGMAX

  • 二针

  • 2000

  • 用步行足配合喂养

状态:

Product Descriptions

Compound Feed Sewing Machine GC1765 Series Descriptions

These two machines are high speed, double needle, split needle bar, post bed, compound feed with walking foot, industrial sewing machine. GC1765D-7 is the direct drive machine with the thread trimmer, automatic air foot lift and back tack. Both of them have the vertical axis rotary hook, the top dial for the quick alternative feet stroke adjustment, powerful and effective compound feed with the walking foot for the constant stitch and trouble-free material feed, slim post bed, large working space under the arm for the large workpieces, high needle bar stroke and high foot lift, safety clutch and automatic lubrication system, the unique designed split needle bar for the corner sewing. Suitable for sewing medium to heavy weight materials, such products as car seats covers, sofa, bags and other leather products etc.

Features

Compound Feed Sewing Machine GC1765 Series Features

  • High speed, post-bed, industrial sewing machines.

  • Top dial for the quick alternative feet stroke adjustment.

  • The safety clutch device prevent hooks damage.

  • The special split needle bar device for the corner sewing.

  • Very good post-bed machines for the car seats manufacturers and factories.

Specifications

Compound Feed Sewing Machine GC1765 Series Specifications

Model

GC1765

GC1765D-7

Number of Needle

2-needle

Max.Sewing Speed

2000SPM

Needle Gauge

6,   8, 10, 12, 16mm

Automatic Thread Trimmer

none

yes

Max.Stitch Length

9mm

Max.Lift of the Presser Foot

16mm

Needle

DPx17, 19-23#


Product Details

Compound Feed Sewing Machine GC1765 Series Details

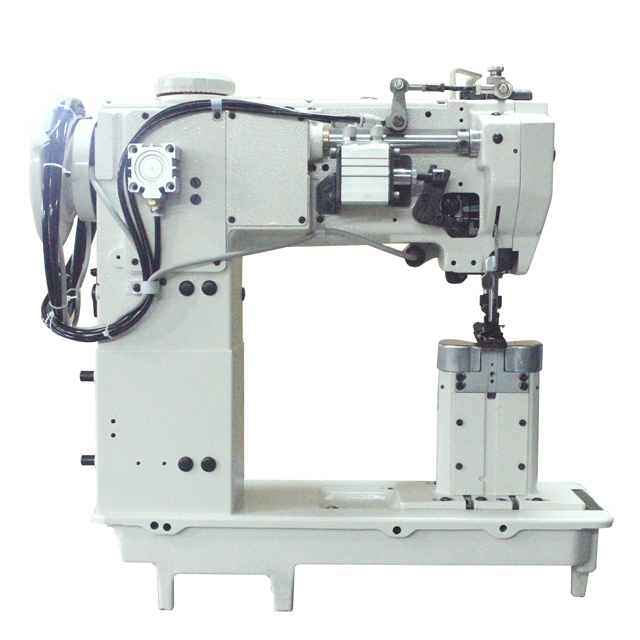

direct drive industrial sewing machine with the thread trimmer - KINGMAX
